　　Excuse me: what is the gasket between KONE elevator track and support and what is its function? Next, the small editor of Paller's floor mat will introduce to you what the gasket is used between KONE elevator track and support.

　　The gasket placed between KONE elevator track and support belongs to guide rail gasket. There are several kinds, and the prevention function is also different. The flat gasket is the basis, which is used to adjust the perpendicularity of guide rail.

　　When in use, it is first installed vertically, and then used for adjustment when checking after all installation. Another is better. The gasket is not flat, but protrudes a groove, and the contact with the guide rail is a line. In addition to the above functions, this kind of gasket is mainly to avoid guide rail deformation or stress concentration caused by the preload of guide plate bolts during installation. Even the verticality can't be adjusted well.

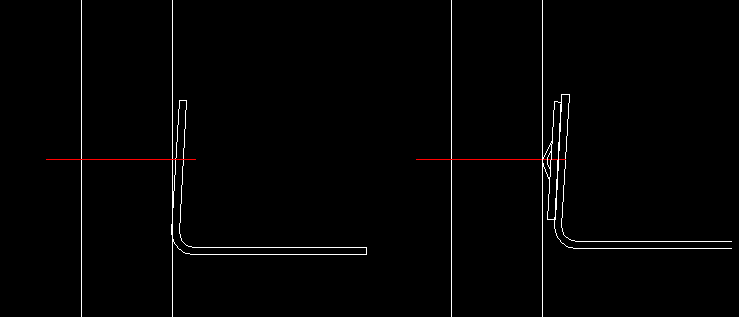

　　If it is line contact, as long as the perpendicularity is adjusted, there will be no such problem. The following figure briefly illustrates from one direction. In reality, all directions may not be uneven.

　　To sum up: the gasket placed between KONE elevator track and support belongs to guide rail gasket. The main purpose is to ensure the perpendicularity of the track. I hope it will be helpful to you!
